Exclusive algorithm technology
Understanding 3000K CCT Variations. Precisely replicating both outdoor and indoor daylight as an exact copy of sunlight.
Duv tunable
Duv describes the distance of a light's chromaticity point from the black curve. With Duv adjustability, a single CCT can have multiple variants, offering more diverse lighting effects.

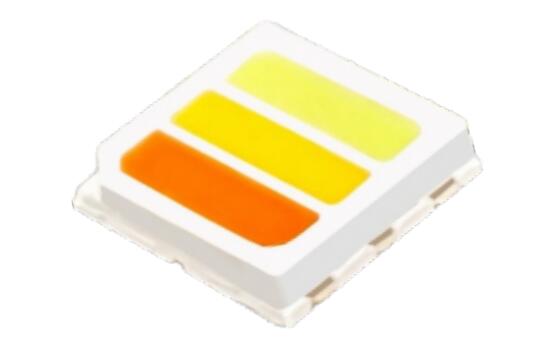

Customizable spectrum
For example, blue light can feature dual peaks, making the spectrum more continuous,closely resembling natural light. It reduces harmful blue light in the 440nm to 460nm range while supplementing beneficial sky blue light at 480nm, along with saturated red light, effectively minimizing the hazards of blue light and eye strain.
CRI >90 for all CCT; up to CRI >98
Colors appear more vivid and natural, ensuring high-quality lighting for daily needs. while remaining compatible with environmental lighting requirements.
A product designed for track lighting
Ideal as a light source for track lights, effectively enhancing visual perception for a more vibrant and comfortable experience.

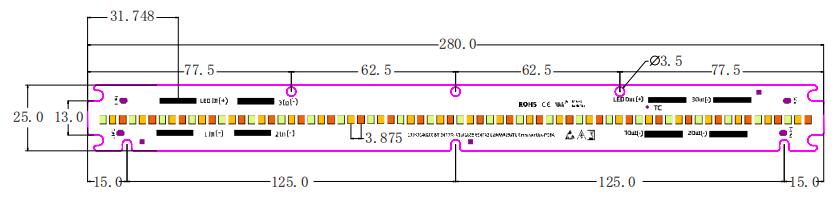

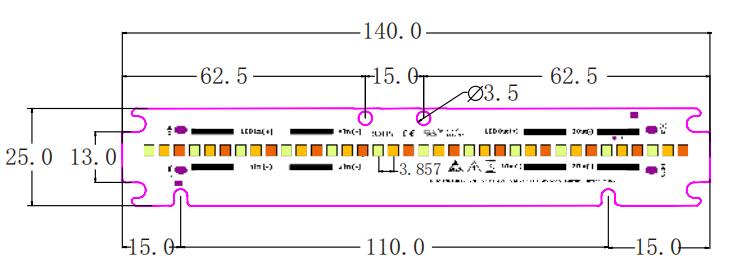

Zhaga-standard LED modules
Luminaire dimensions can be customized and retrofitted using Zhaga-standard PCBA.
- CCT range: 2700K–6500K, with a special 2200K option
- Module lengths: 140mm, 280mm, and 560mm
- Non-SELV for non-SELV drivers and SELV product portfolio for SELV drivers
- Front and rear connector options
- Zhaga-standard module dimensions
- Excellent color consistency
- OEM and ODM customization service
- 5-year warranty
Rectangular PCBA modules in various sizes, designed for installation in diverse brick-made ceiling systems.

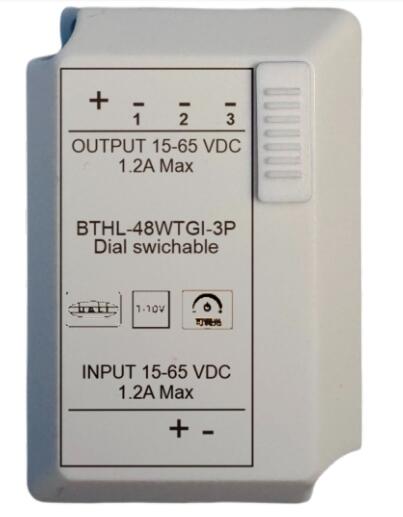

The BTHL-48WTG1-3P36V module, controllable via DIP switches, knobs, or
remote, is connected between a 15–60V DC constant current power supply and
a Sunttro-LED load. It converts a single-channel constant current output signal
into three-channel output, designed to drive constant current Sunttro-LED
loads such as Sunttro-COB, CSP, light strips, and other PCBA modules.
The BTHL-48WTG1-3P36V can control up to three channels, making it an ideal
partner for single-channel constant current dimming power supplies and
three-channel Sunttro-PCBA modules. The maximum combined output current
is 1.2A, which can be freely distributed among all output channels. The module
also features short-circuit protection.

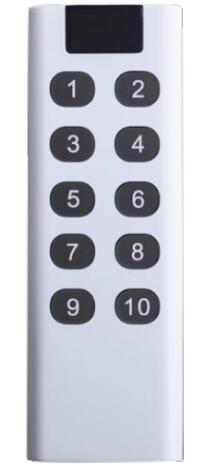

The BTHL-48WTG1-3P36V can be controlled via DIP switches, a 433MHz
remote, or a traditional constant current dimming knob. A simple replacement
is all it takes to unlock Sunttro’s powerful lighting and color effects.

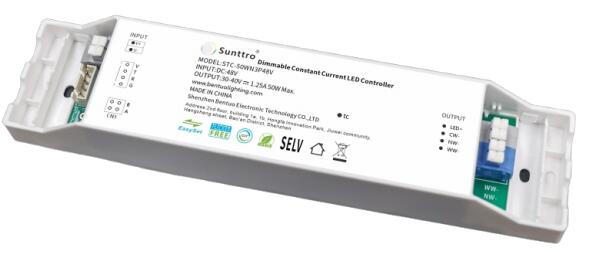

Controller
- Efficiency up to 90%, THD as low as 7%
- Start-up delay < 0.5 seconds, standby power consumption < 0.5W
- Multi-level output current via DIP switches
- Output current accuracy: ±1%

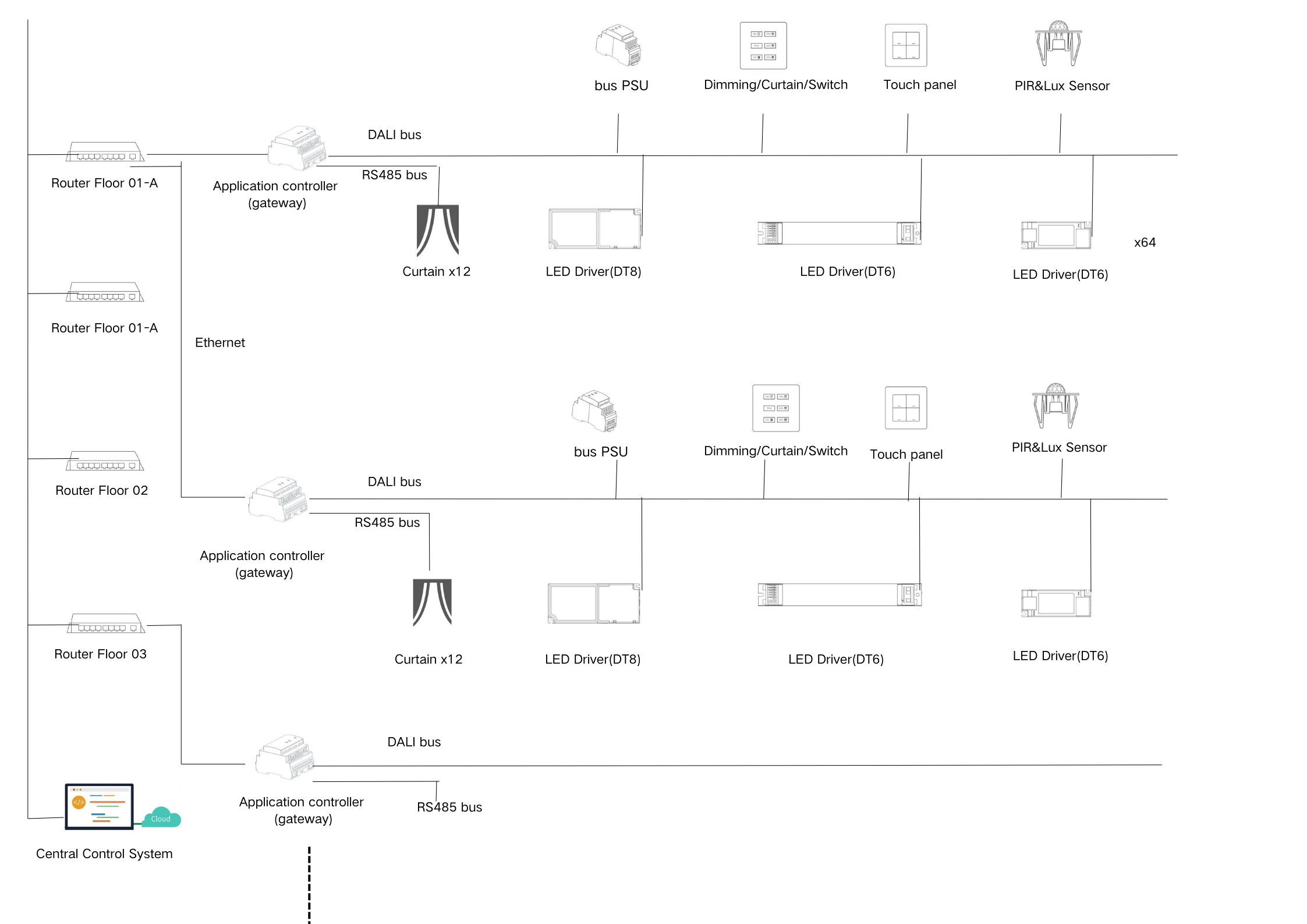

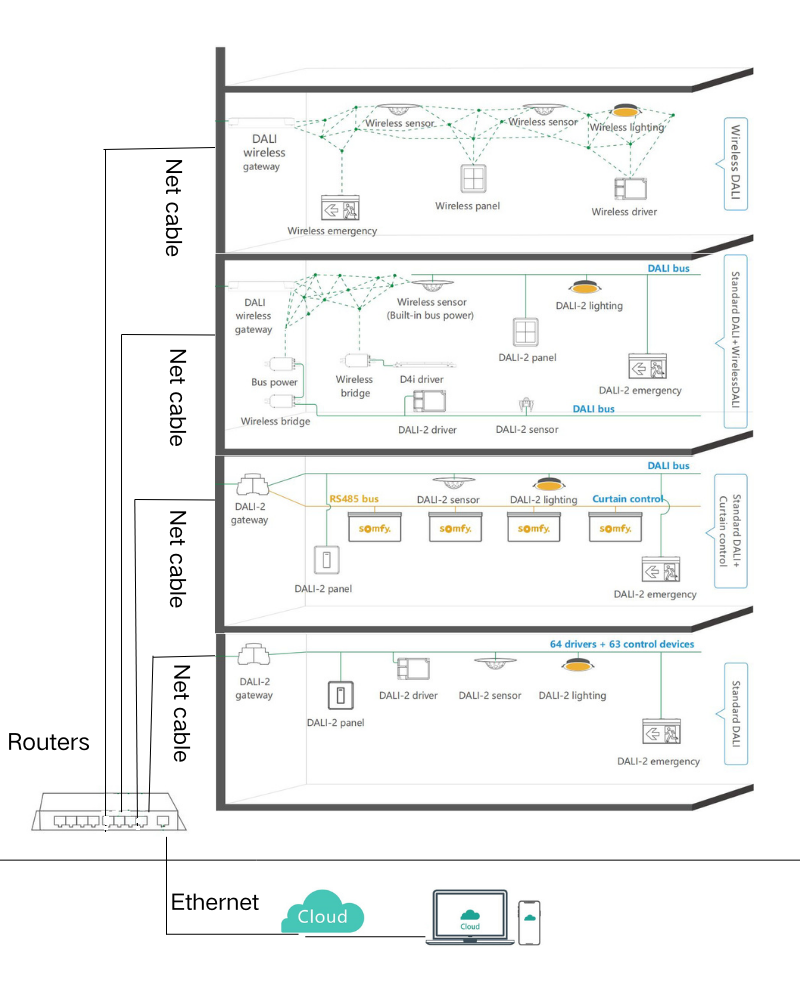

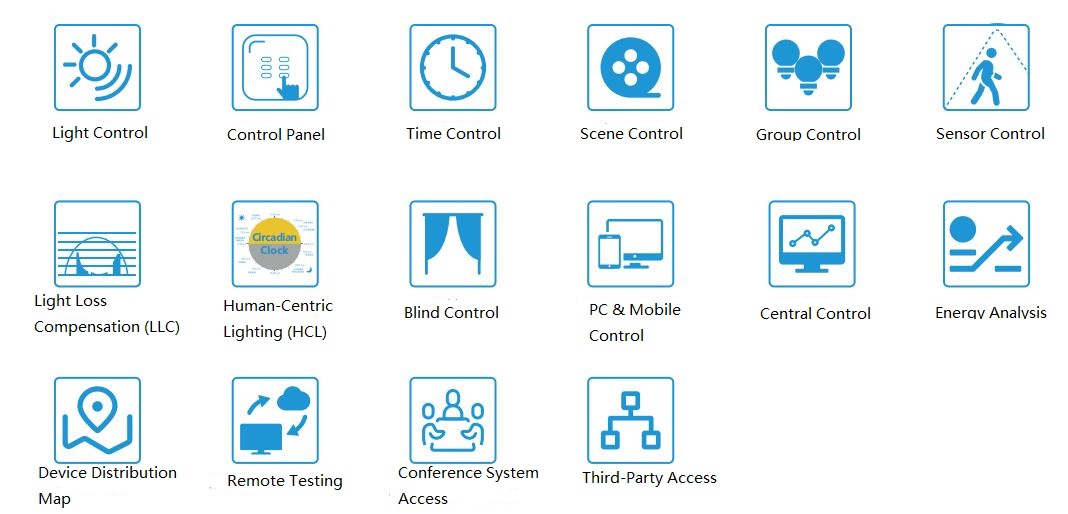

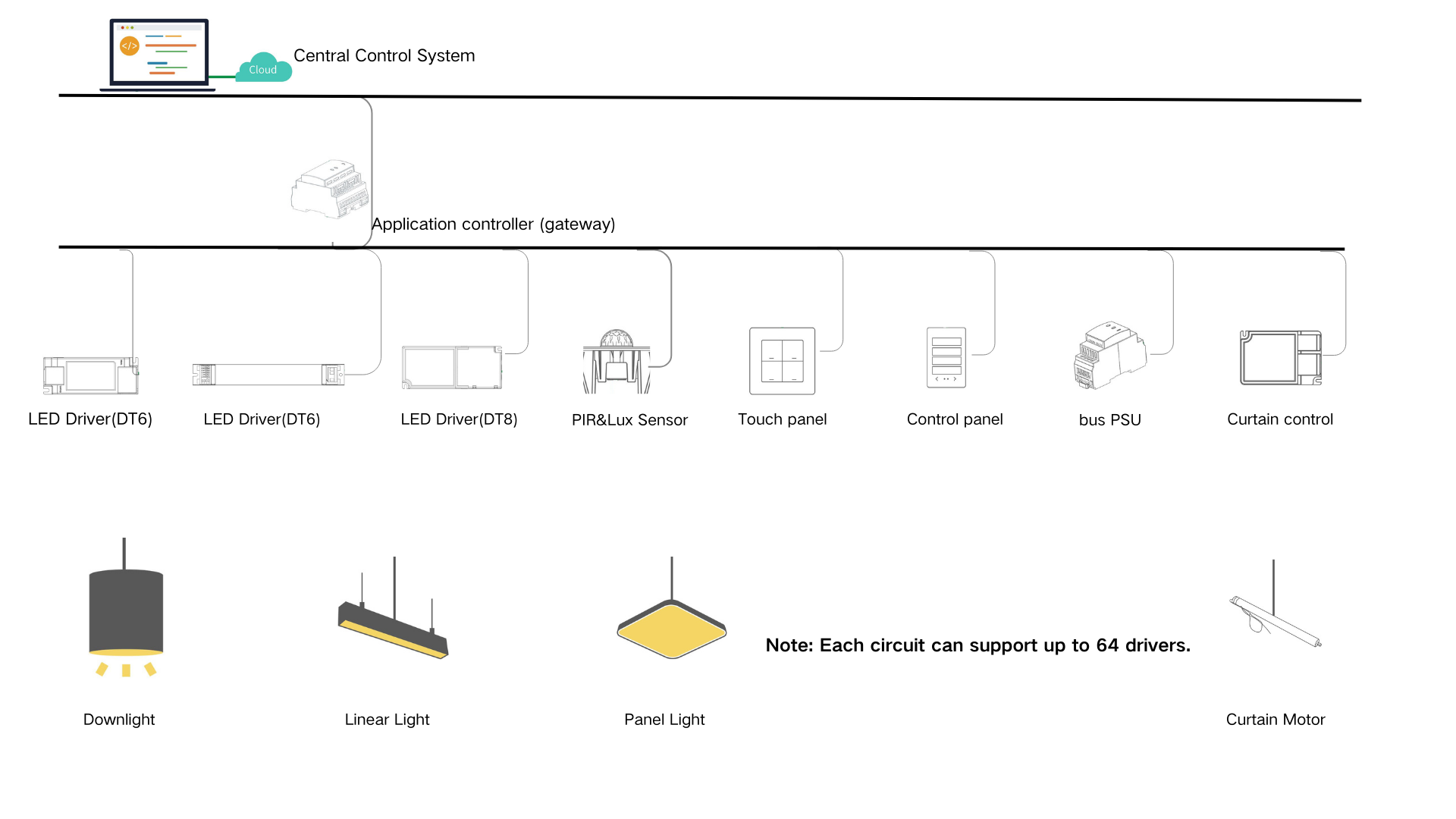

Control System

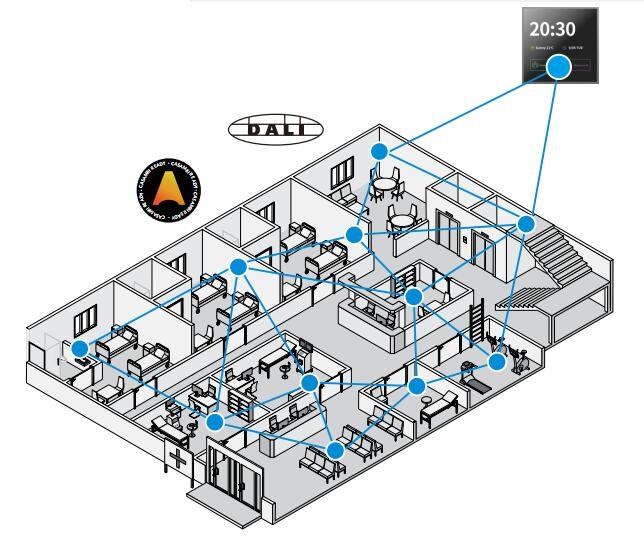

Casambi and DALI ecosystems.

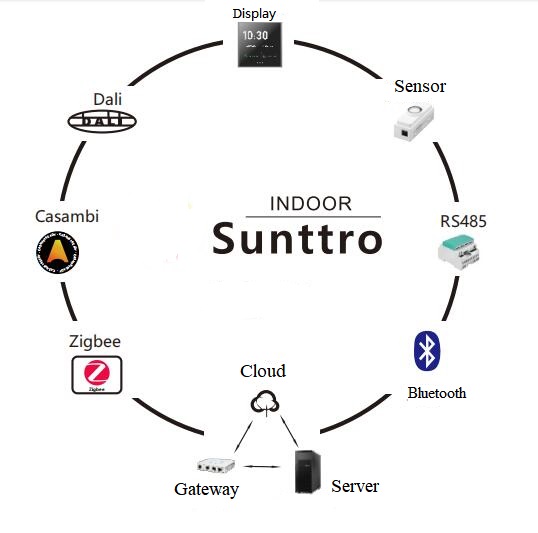

Ecosystem
- Sunttro partners with world-leading LED lighting control manufacturers.
- We now collaborate with Koolmesh, Casambi, Silvair, Zigbee, and EnOcean to
- Ddeliver a broader range of Bluetooth lighting solutions.
